Harmar - AL435 - 3-Axis Inside Lift - 400 lbs capacity
The AL435 powered boom maneuver the largest possible power chair or scooter into the smallest vehicle openings.

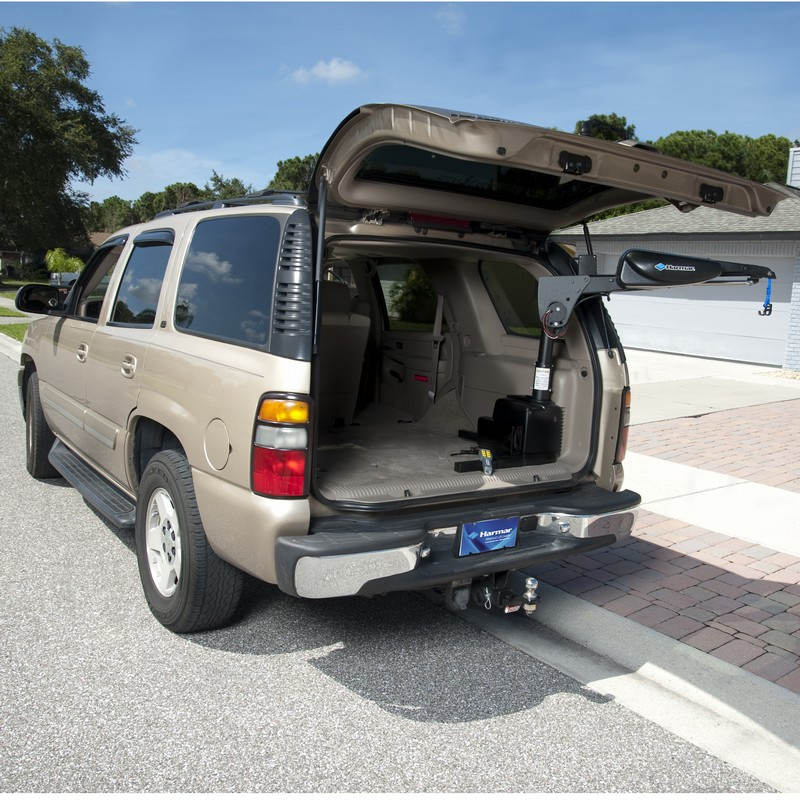

More versatile and flexible than any other inside van and pick-up truck lift on the market today, it adapts to most mini-vans, full sized vans, SUV’s and pick-up trucks. Fits other specialty vehicles such as the Chrysler PT Cruiser. Triple axis lift provides fully powered lifting, boom extension and rotation for the easiest of, most effortless loading.
Smaller vehicle space? New EZ-Detach Seatback accessory converts power chairs to a lower profile to fit more easily into small cargo areas. Includes easy-turn handles, weight-distributing handle bar for easy removal and replacement.
Also Compatible with Truck Lift Applications.
Features
- 10.8 full inches of power extension to reach beyond rear bumper
- Power Lifting, extension and rotation
- New, simplified base fits in a smaller footprint
- Easier to install and disassemble
- Faster mounting with fewer holes, less drilling when necessary
- Passenger or driver side install
- Wireless remote optional
Specifications
-
Maximum Lifting Capacity: 400 lbs
-
Installed Weight: 76 lbs
-
Maximum Lifting Height: 43" at Horizontal Boom Position
-
Minimum Lifting Height: 32" at Horizontal Boom Position
-
Range of Boom Adjustment: Powered from 21" -31.8"
-
Arm Angle Adjustment: -31.5 to 40.5 degrees (5 deg increments)
-
Column Rotation: 180 Degree Adj. at +/- 20 Degree Increments
-
Arm Reach: 22"-33"
- Warranty: 3-Year Transferable
The Harmar Mobility warranty is the simplest in the industry, a 3-Year Fully Transferable Warranty. If the product changes hands, the remainder of the warranty transfers to the new owner. Other manufacturers offer a warranty only on the original owner's usage, but we warranty the product itself. That is how committed Harmar is to producing the highest-quality lifts and ramps you can buy.
