Roll-A-Ramp - Portable Ramp 22"x18' - A12217A19

$2,442.77 2124.15
(You save $318.62)

Roll-A-Ramp - Portable Ramp 22"x18' - A12217A19

$2,442.77 $2,124.15
(You save $318.62)
SKU:
AT07100515
Weight:
0.00 LBS
Availability:
Usually ships within 24-48 hours. Current lead times vary. Please email us at customerservice@allterrainmedical.com to get the most updated lead time.
Shipping:
Free Shipping
Quantity:
Share

Product Description

Roll-a-Ramp Logo

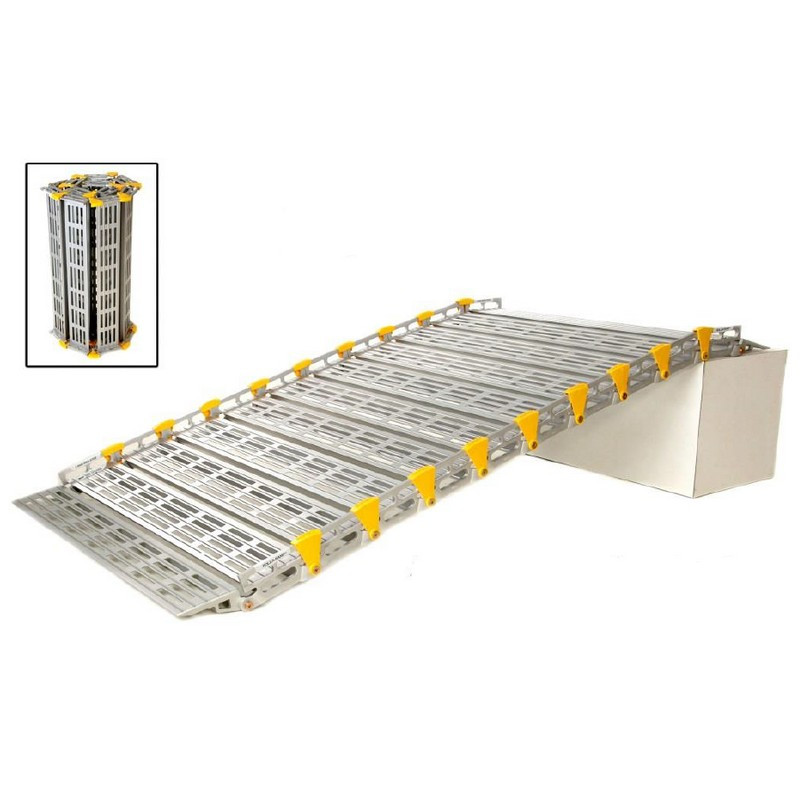

Roll-A-Ramp - Portable Ramp 22"x18' - A12217A19





Roll-A-Ramp® is the most portable and versatile ramp available. Available in 12″,  22″, 26″, 30″, 36″, and 48″ widths and most any length, Roll-A-Ramp® is an excellent choice for anyone looking for a superior quality access ramp for wheelchairs, scooters, walkers or any use.

Unique features of Roll-A-Ramp® portable ramps:

  • Lightweight and Strong – Aerospace 6061 aluminum supports up to 1,000 pounds or 2,000 pounds for the 12″ twin track ramps
  • Portable – Roll it up and take it with you
  • Warranty – 10-year unconditional warranty on ramps
  • Versatile – Any size, any time
  • Split ramp into multiple sections with Quick Release Pins

Six available widths:

  • 12″ – For very wide chairs or heavy cargo. 12″ ramps are sold as pairs.
  • 22″ – Useful for hand dollies or light cargo
  • 26″ – Suitable for mini-van use and narrower chairs or walkers
  • 30″ – Standard size for most applications
  • 36″ – For public applications or larger chairs
  • 48″ – Suitable for industrial needs

Product Highlights

Ramps are built to ANY length, so you get what you NEED not what's AVAILABLE. Lengths Unlimited! Each ramp can be built for your own specific need. Stores easily Just roll it up and go! Each lightweight Roll-A-Ramp section rolls up quickly and can be carried with the strap/handle. Roll-A-Ramp stores easily in very little space. Roll it up, fold it up, separate it and store it side by side.

  • Approach Plates: Each end of the Roll-A-Ramp has a special 6" Approach Plate attached. The purpose of this is to ensure a smooth entrance and exit to the ramp. This special Approach Plate is not load bearing meaning the top plate alone cannot rest on any surface while ramping. It is important that when placing the ramp on the top surface that the Approach Plate plus the first ramp link must rest on the surface. Order extra approach plates for when you want to separate a ramp into shorter sections. This allows you to have 2 or more complete ramp systems. Longer home modular systems can have a short piece removed for a portable ramp, and then put back on to once again have a full system. Superior Engineering techniques make Roll-A-Ramp® incredibly strong yet lightweight, similar to that of a bridge STRENGTH Fabricated from strong 6061 Aircraft Quality Anodized Aluminum, Roll-A-Ramp supports up to 2,000 lbs of distributed weight! Roll-A-Ramp Accommodates all brands of manual or electric wheelchairs, or any piece of equipment needing a ramp. NEVER PERMANENT No matter how the system is configured; short portable ramp to extensive modular ramp, to vehicle-mounted application, your Roll-A-Ramp ALWAYS remains portable.
  • Unique Design - Patented link construction means you will never have the wrong size ramp; simply add additional links to change length with simple tools provided with your ramp. Versatile One Ramp - Many Uses. Use the same ramp to go from home to friends to vehicle with ease. No need to purchase multiple ramps.

Accessories

  • Additional Links: By adding extra ramp links you can increase the length of your Roll-A-Ramp® at any time. Just remove the ramp’s bottom end piece (lower approach plate) and bolt on the extra links. Order as many 1′ links as you need. Tools and installation instructions included. Your ramp never becomes obsolete and changes with your needs.
  • Quick-Connect Pins: Roll-A-Ramp owners love Quick-Connect Pins because they make it possible to increase – or decrease – the length of your ramp depending on the circumstances. The amazing flexibility and versatility of a Roll-A-Ramp is even more remarkable with Quick-Connect Pins because you can easily turn one ramp into multiple ramps.
  • Support Stands: Roll-A-Ramp support stands are required for any ramp longer than 10 feet. Roll-A-Ramp suggests placing a pair of support stands approximately every 6-7 feet. The support stands attach to the ramp using t-handle bolts and block-nuts provided. No special tools are needed. Their custom ramp support stands are adjustable based on the height ranges below. Stand may also be placed anywhere on the ramp.
  1. G-3612-XS  Extra Short Support Stands 6”-9” adjustment range
  2. G-3612-S  Short Support Stands (short) 10”-13.5” adjustment range
  3. G-3612-L  Long Support Stands 15.75-21.5″ adjustment range
  4. G-3612-XL Extra Long Support Stands 23”-35″ adjustment range
  5. G-3612-XXL  2XL Support Stands (2X long) 35.5”-52.75″ adjustment range
  • Seg Mount Brackets: Seg-Mount Brackets, also called Z-Mount Brackets allow for easy mounting of your portable ramp to any landing surface. The ramp’s upper approach plate slips into the bracket at 90-degrees and removes in seconds. Z-Mount brackets allow your ramp to be level with the surface of your landing. Can be installed into wood, concrete or metal.
  • Pickup Tailgate Brackets: For use with pick-up trucks or delivery vans. Ramp brackets easily rivet or screw to tailgate or any surface where you need a little extra holding power. Popular for loading into a bed of a pick-up. The low profile does not interfere with normal use. Tailgate Brackets hold the ramp securely in place on any surface.
  • Standard Approach Plate: The Standard Approach Plate comes standard with every ramp and requires that the approach plate and the first link of the ramp rest on the platform or landing you are accessing.

Determine Length

Roll-A-Ramp® Ramp Length Calculator

Roll-A-Ramp® Ramp Weights and Dimensions

Part Numbers

Part No. Ramp Length Part No. Ramp Length Part No. Ramp Length
A12202A19 3' x 22" A12208A19 9' x 22" A12214A19 *15' x 22"
A12203A19 4' x 22" A12209A19 10' x 22" A12215A19 *16' x 22"
A12204A19 5' x 22" A12210A19 *11' x 22" A12216A19 *17' x 22"
A12205A19 6' x 22" A12211A19 *12' x 22" A12217A19 *18' x 22"
A12206A19 7' x 22" A12212A19 *13' x 22" A12218A19 *19' x 22"
A12207A19 8' x 22" A12213A19 *14' x 22" A12219A19 *20' x 22"
* Support Stands required at these lengths
